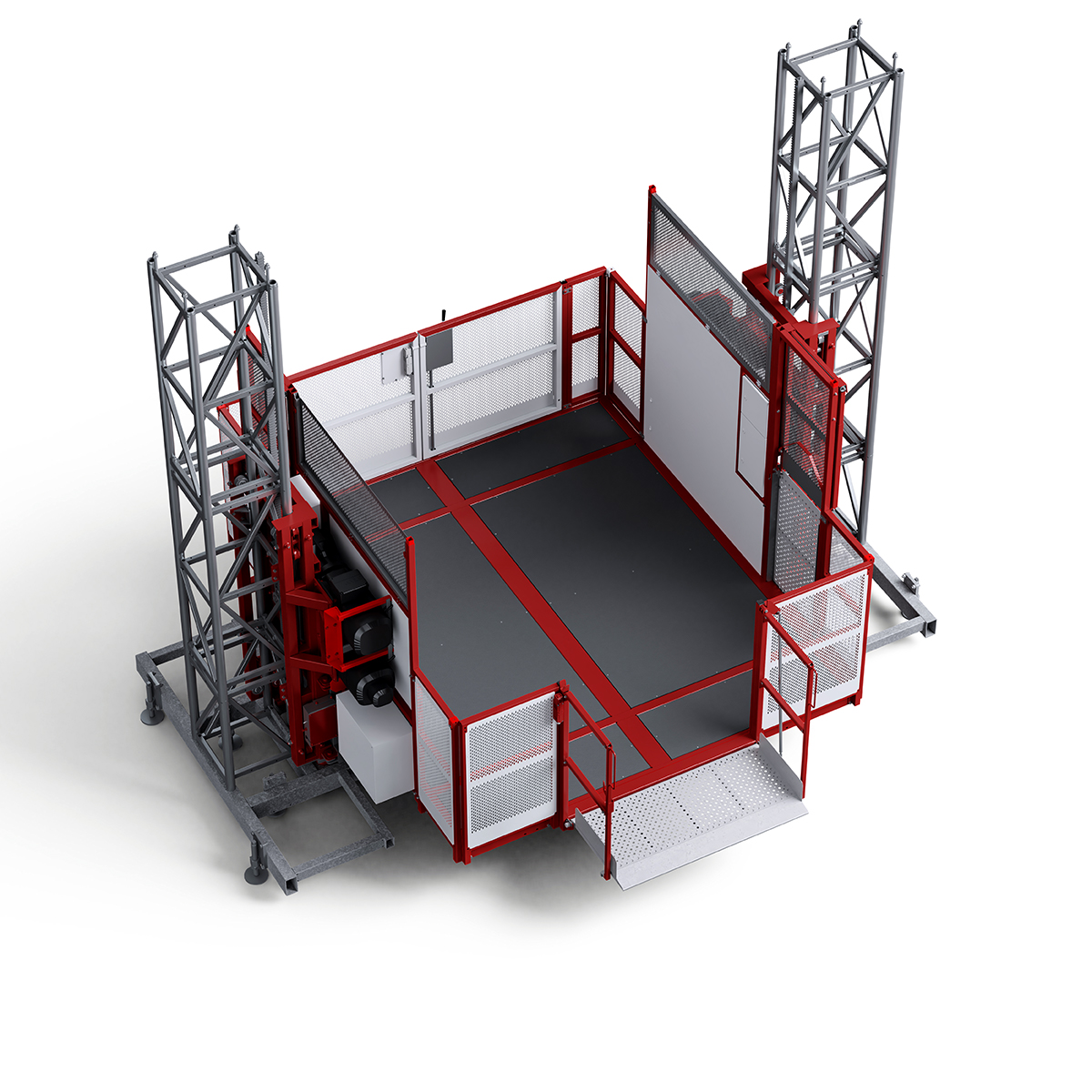

TP7 - 4032 T
Transport Platform
Efficiency and safety
In addition to modularity, it allows operating in a single or twin configuration.
This provides multiple options by being able to select the appropriate cabin dimensions and load capacity for each project.
Speed: 12-22 m/min | Maximum load: 4000 Kg
Technical data sheet
| Technical data | |
|
Model |
TP 7 - 4032 T |
|
Mast system |
M500R |
|
Load capacity (material) |
4000 Kg |
|
Load capacity (persons) |
7 Persons |
|
Lifting height |
150 m |
|
Lifting speed |
12-22 m/min |
|
Power supply |
4 x 7,5 kW |
|
Platform dimension |
0,5+2,2+0,5 m x 1,4 m |
|
Maximun distance between ties |
6 m |
